Fire Rated Boards

Fire Rated Boards are designed to prevent the spread of fire from one compartment to another where mechanical and electrical services penetrate separating walls and doors, and provide up to 4 hours fire resistance. Comprehensively tested and assessed by independent authorities in accordance with BS476 part 20 and BS EN1 366-3 for up to 4 hours fire resistance.

Fire Rated Boards consist of a high density mineral fibre slab which is factory pre-coated with a Water based, fire resistant coating. When used in conjunction with fire rated coating and mastic, the boards provide an effective fire barrier for large multiple-service openings.

Fire Rated Boards are suitable for use in any building which has single or multiple services penetrating fire rated compartment walls and floors. Typical types of building where  Fire Rated Boards are commonly used are:

• Retail Stores and Shopping Centres
• Communications and Broadcasting Facilities
• Commercial Buildings
• Power Stations and Control Rooms

When exposed to the heat of a fire, the excellent .thermal insulation properties of Fire Rated Boards provide an effective barrier, preventing the passage of fire and elevated temperatures.
The fire resistant coating and mastic seal around services and board joints provide a further barrier to the passage  of cold smoke.

Fire Rated Boards to provide up to (1.,  2 , 3 or 4) hours fire resistance to all floor/wall openings.

^ Back to Top ^

ACRYLIC INTUMESCENT MASTIC


Acrylic  intumescent  Mastic  is designed   to prevent  the   spread of fire  from one· compartment  to another wherever services penetrate separating  walls and floors  or wherever  a  gap  remains between  elements in fire rated constructions, walls or floors,  and provides up to 4 Hour fire resistance.

 Acrylic intumescent Mastic is a single part, water based acrylic mastic,   which provides a firm but flexible seal to joints in a variety of fire rated structures. .lt will not support combustion and when exposed to fire it expands effectively seal any gaps, preventing the spread of smoke and fire through any joints.

Comprehensively   tested and assessed by independent Authorities    in accordance with BS476 part 20BS ENl 366-3,   ASl 530.4,   and AS4072.1 and  SABS 0177 Part 2 for up to 4 Hours fire resistance.

Acrylic  intumescent Mastic  is suitable  for use in· most buildings   which-have     gaps  or  joints  in,  or where services pass  through,   fire  rated compartment walls- and floors.

Typical types of building   where Acrylic Intumescent Mastic is commonly used are: Flats and apartment blocks, Hotels, Prisons, Office blocks, Hospitals,    Airports, Retail centers,   Industrial   Buildings, Plant Rooms, etc

When  exposed   to the  heat  of a  fire,   the  intumescent material   contained   in the  FR Acrylic   intumescent mastic expends  to fill  any  small gaps,  thereby  maintaining the integrity of the seal  and preventing'  the spread  of fire from one compartment to another.

^ Back to Top ^

FIRE RATED FOAM

FR Foam is a single pack Fire Rated polyurethane expanding foam, and is designed to prevent the spread of fire and smoke from one compartment to another through construction joints, gaps and voids or openings for service penetrations in fire rated walls and floors, and provides up to 4 Hours fire resistance. Under fire conditions, FR Foam provides an effective insulating barrier, thereby maintaining the integrity of the wall or floor and preventing the spread of fire from one compartment to another.

^ Back to Top ^

CABLE TRANSIT

Cable Transit device is designed to prevent the spread of fire and smoke from one comportment to another where electrical data and communications cables penetrate through separating walls and floors. Transits consist of a square or round section steel sleeve, which contains a heat reactive intumescent material. The unit has integral hinged top that provides an easy retrofit option where cables are pre-installed. Cable Transits are suitable for use in any building where electrical, data, or communication cables penetrate through fire rated compartment floors and walls, including drywall.

Typical types of buildings where Cable Transits are commonly Used: Banking and  finance buildings, data  processing centers, TV and  media  studios, apartment buildings, hotels, office buildings, hospitals, airports, retail centres etc.

When exposed  to the heat  of a fire, the graphite  based intumescent material contained in the Cable Transit expands rapidly to  close and seal the inside of the sleeve , preventing the spread  of fire and  smoke from one comportment to another.

^ Back to Top ^

FIRE RATED MORTAR

Fire Rated Mortar is a lightweight mortar compound which is designed to prevent the spread of fire from one compartment to another where services penetrate separating walls and floors, and provides up to 4 hours fire resistance.

Where to use fire Rated Morter:

Fire Rated Mortar is particularly suitable for reinstating compartment floors where HVAC ducts. pipes and electrical services have been installed. Small holes and imperfections of fit can easily be "made good" using Fire Rated Mortar.

Typical buildings where Fire Rated Mortar is commonly used are:

• Multi-story buildings with service risers •Communication and Broadcasting Facilities
• Hospitals, Hotels and Apartment Blocks • Power Stations and Control Rooms

Fire Rated Mortar can be used in walls or floors.

HOW DOES FIRE RATED MORTAR WORK?
When exposed to the heat of a fire, the excellent thermal insulation properties of Fire Rated Mortar provides an effective barrier, preventing the passage of fire and smoke. Unlike sand and cement mortars or concrete, the special formulation resists shrinkage and cracking in a fire situation. During installation and the curing process, Fire Rated Mortar actually expands ensuring that an excellent seal is possible even in irregular openings.


^ Back to Top ^

FIRE PILLOWS

Fire  Pillows are  designed to provide  a flexible system    of  preventing     the   spread    of  fire   from   one compartment    to another   wherever    there  are openings    for services    passing   through   separating    walls   and  floors, and provide   up to 4 Hours  fire resistance.
  Fire   Pillows    are  manufactured    from   high grade   glass   fibre  bags.    and  contain    non-combustible fillers  which    expand  when   exposed   to fire  conditions. FR  Fire  Pillows are unaffected   by moisture,    humidity   and are   suitable       for   a  wide    range    of  permanent      or temporary  fire  seals,  and  provide   an extremely   versatile solution   where services   are being   regularly   changed.

Comprehensively   tested and assessed  by independent authorities   in accordance  with BS476-20:1987    and EN1366-3:2004,   for up to 4 Hours  fire resistance.

FR Fire  Pillows  are suitable for use in  most buildings  where services pass through openings  in fire rated compartment walls and floors.

 FR Fire  Pillows are commonly used in:
Computer Rooms, Telecommunications and Broadcasting facilities, Hotels,  Commercial Office Buildings, Hospitals, Airports, Retail  Centres, Industrial  Buildings,  etc.

Any opening that requires a temporary fire seal.

 FR  Fire Pillows can  be used in walls or floors.

When  exposed   to a fire, the filler  materials   in  the  FR Fire   Pillows  expand  to form  a durable insulating  barrier,  thereby  maintaining the integrity of the  seal and preventing the spread  of fire  from one compartment to another.

^ Back to Top ^

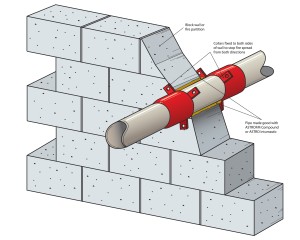

PIPE COLLARS

Pipe Collars are designed to prevent the spread of fire from one compartment to another where plastic pipes penetrate separating walls and floors, and provide up to 4 hours fire resistance. Pipe Collars consist of a split hinged powder coated steel shell, which contains the heat reactive intumescent material. The unit is held closed around the pipe by a toggle and latch for ease of closure by the installer.

Pipe collars are suitable for use in any building which has plastic  pipes penetrating  fire rated compartment walls and floors.
Typical   types of buildings where Pipe  Collars  are commonly  used are:

Flats  and Apartment Blocks,   Hotels,  Hostels,   Halls  of Residence,  Prisons,  Office Blocks,  Hospitals, Airports, Retail Centres, etc.

Pipe Collars can be used  in walls or floors.

When exposed to the   heat of a fire, the intumescent material contained within the Pipe Collar  expands  and exerts pressure on the melting plastic pipe,  causing  the opening  to be closed off and thus preventing  the spread of fire from one compartment to another.

^ Back to Top ^

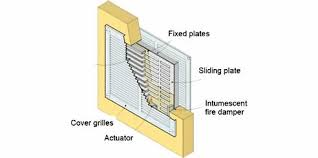

Intumescent Dampers

lntumescent Dampers are designed to prevent the passage of flame and smoke through or into air movement ventilation ductwork or through air transfer apertures in walls, timber and steel fire doors.

lntumescent Dampers are manufactured from galvanised channel and comprise horizontal metal blades lined with a heat reactive intumescent material. Intumescent Dampers are available for circular, rectangular and square ducts and apertures. lntumescent Dampers should be used to prevent the spread of flame and smoke from the room of fire origin to other compartments and escape routes through ventilation ductwork as outlined in method 1 of BS5588-9.

Intumescent Dampers can also be installed in timber or steel fire doors, fire compartment walls or partitions where such apertures form part of an air distribution system. Louvre cover plates are also available.

In a fire situation, the intumescent material will expend within the damper fully closing the duct or air transfer aperture to the passage of hot smoke to adjacent voids and compartments
